DC 4-20mA 0-10V RS485 35mm DIN Rail Current Transducer 0-20mA 0-10mA 0-5V AC Current Signal Converter 500mA 1A 2A 5A 10A 20A
4.3 (86 items)
Limited Time SaleUS$26.04 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211043769 | Release Date | 2026/04/04 | List Price | US$17.36 | Model Number | 211043769 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

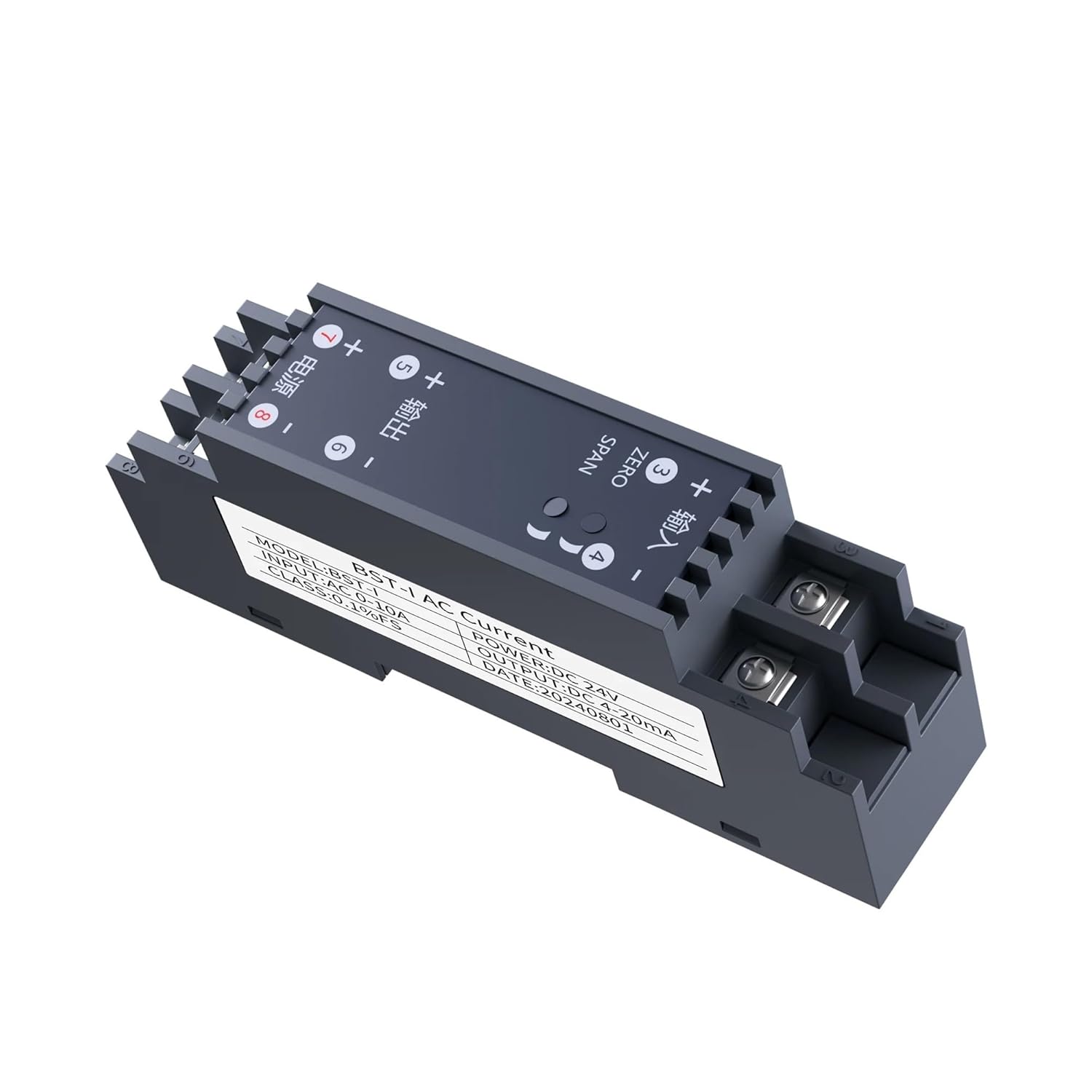

<;1>. BST-I AC current transmitter, it converts AC signals from AC into standard process signals.<;2>. It is used for DCS to centrally monitor the motor,pump and heat supply network,monitor the power supply line and its current.<;3>. Standard 35mm DIN rail independent mounting.Full channel configuration,Parameter customizable.Technical ParametersInputInput Current RangeAC 0-20A;CustomizedOutputOutput Signal4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;CustomizedOutput Load ResistanceRL500(output current signal)RL10K(output voltage signal)Other ParametersPower SupplyDC24V,±10%Accuracy0.2%F.S.Respond Time400mS(0-90%) (TYP)Rated Power Consumption1W(1 in 1 out,DC24V power supply,output 20mA)Isolation Intensity2000V AC/1min(between input-ouput-power)Insulation Resistance100M(between input-ouput-power)Supply Voltage : DC24VAccuracy Class : 0.5%Model Number : BST-IDisplay Type : Analog OnlyDIY Supplies : ElectricalInput current range : AC 0-20AOutput signal : 4-20mA;0-20mA;0-5V;0-10VResponse time : 400mS(0-90%)(YTP)Installation method : Din rail
- BQHHWTZ DC 4-20mA 0-10V RS485 35mm DIN Rail Current Transducer 0-20mA 0-10mA 0-5V AC Current Signal Converter 500mA 1A 2A 5A 10A 20A
| Brand Name | BQHHWTZ |
|---|---|
| Manufacturer | BQHHWTZ |
